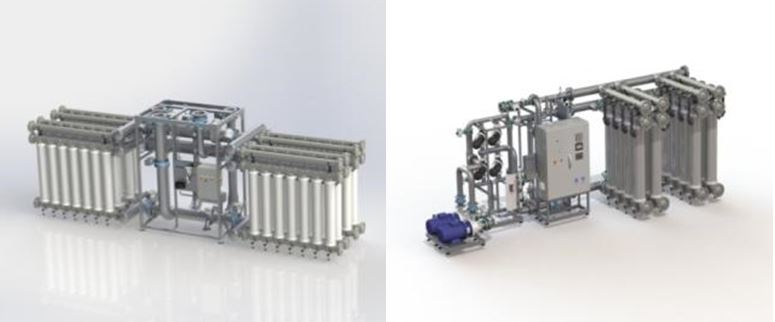

pressurized in/out ultrafiltration modules water treatment system – aquasource® M and aquasource® L

in/out ultrafiltration modules – aquasource® M and aquasource® L
water treatment system by pressurized in/out ultrafiltration modules – aquasource® M and aquasource® L

It can be installed in DIRECT or in COUPLING on clear water (drill-holes, sources, karsts, lakes) with turbidity peak up to 1000 NTU or POLISHING on degraded water (rivers) turbidity peak up to 2000 NTU.

Possibility of direct filtration on clarified water (short line without sans filtration) - must be studied on a case-by-case basis.

New ultrafiltration membrane ALTEONTM I-XL60 made of PolyEthersulphone (multi-channel In/out Mechanical type). Fibers are assembled by 7, giving to the membrane a higher mechanical resistance than individual fibers.

aquasource® L

  • > 20,000 m3/d
  • Adaptable system : tailor made according to the client’s needs

aquasource® M

  • From 300 to 20,000 m3/d
  • Plug and play concept; ready to operate, compact and autonomous

aquasource® XS

  • < 300 m3/d
  • equiped, compact, evolving and connected system

key figures

  • Guaranteed turbidity < 0.1 NTU(standard 0.5 NTU)
  • Division by 3 of chlorine in the network
  • Energy consumption < 60 Wh/m3
  • Filter performance 1000 times higher than with the sand filter
  • Water losses < 5%

among our references

  • Lausanne (Switzerland) – 40,000 m3/d – 9 blocks of 44 modules
  • Angers (France) – 120,000 m3/d – 16 blocks of 24 modules
  • Gemenos (France) – 5,000 m3/d - 2 aquasource® M, 20 modules
profit
  • Ultra quality : Perfectly clear water , less chlorine in the network, water taste restored
  • Safety : Physical barrier, protected and hygienized network , residual chlorine in all network (persistence)
  • Heath : Less chloramines and THM, no reagents nor polymer, physical removal of pathogens,
  • Implementation :civil structure simplified, rapid implementation, hazard control during the construction phase.
