thermophilic digestion at 55°C - Digelis® Fast
Digelis® Fast is an optimized process for thermophilic sludge digestion combined with energy recovery equipment to accelerate the sludge digestion cycle.
Digelis® Fast is capable of accepting high loads and providing shorter contact time for the sludge and then smaller reactor size.
Spiral Heat Exchanger : A unique feature to preheat the fresh sludge and to avoid any energy over-consumption.
key figures
- 40% reduction in the size of digesters compared to conventional mesophilic process
- Digestion reaction kinetics multiplied two-fold
among references

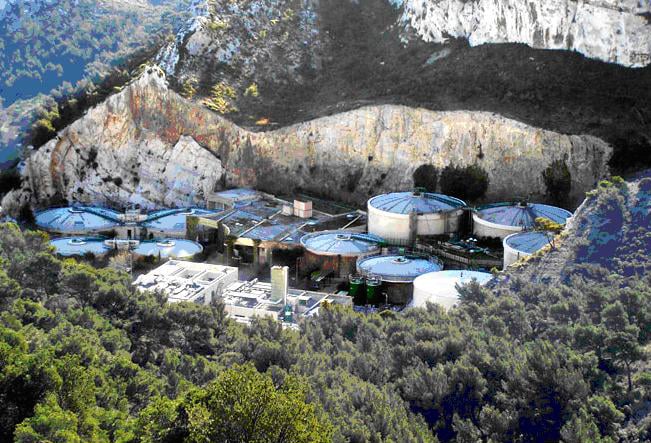

- Marseille (France) 1,800,000 PE
- Achères (France) 6,300,000 PE
- Annecy (France) 230,000 PE
- Csepel (Hungary) 1,600,000 PE
profit
- Enables to increase the capacity of existing digesters during their renovation without any major equipment modification
- Investment lower than mesophilic digestion
- Energy consumption perfectly controlled thanks totheintegration of energy recovery device at the reactor outlet
- Biogas production equivalent to a mesophilic digestion
